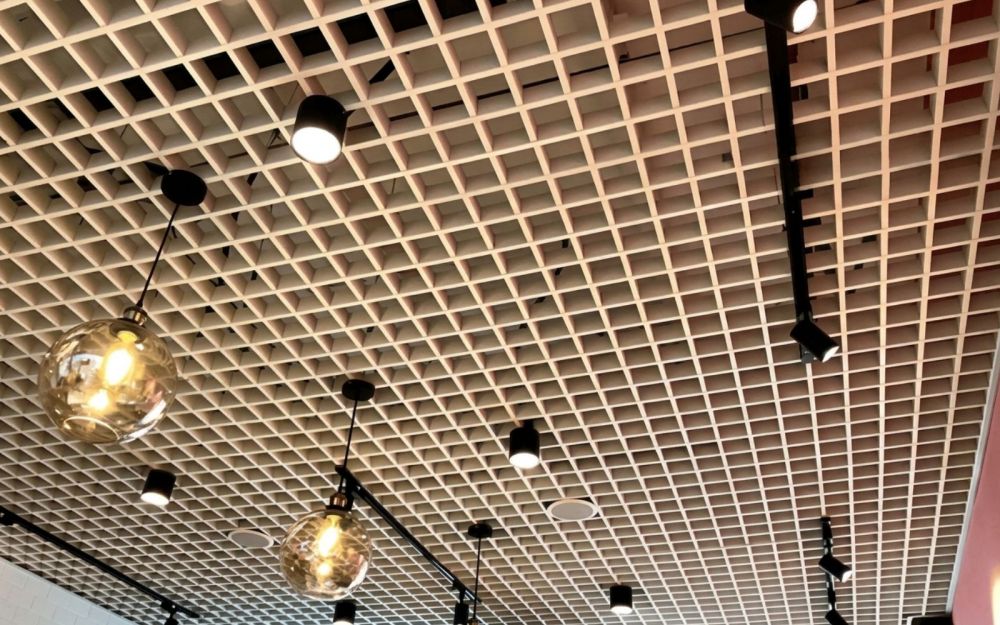

Open Cell Ceiling

An open cell ceiling is a contemporary design choice that combines aesthetics with functionality. Featuring a grid-like structure with exposed cells, this ceiling type enhances airflow and acoustics while creating a modern, industrial look. Ideal for commercial spaces and modern homes, open cell ceilings offer easy access to building systems above, making maintenance straightforward. Their unique design not only contributes to a distinctive visual appeal but also supports improved sound absorption and ventilation.

SPECIFICATIONS:

Open cell ceiling specification Unit : mm
Height 35 40 45 50 60 80
Width 10 10 10 10/15 15 15
Thickness 0.45-0.6 0.45-0.6 0.5-0.65 0.5-0.65 0.5-0.65 0.5-0.65

Square open cell specification Unit : mm
50x50 75x75 100x100 125x125
150x150 200x200 250x250 300

Rectangle open cell specification Unit : mm
50x100 50x150 100x200

product lay 2

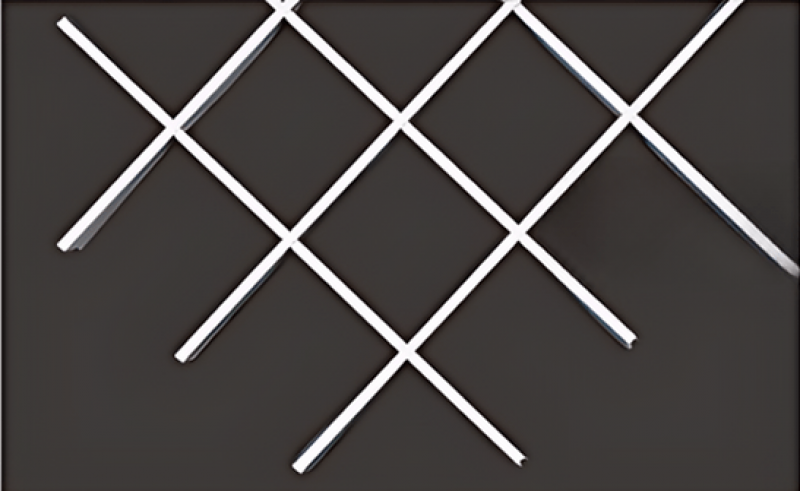

product lay 3

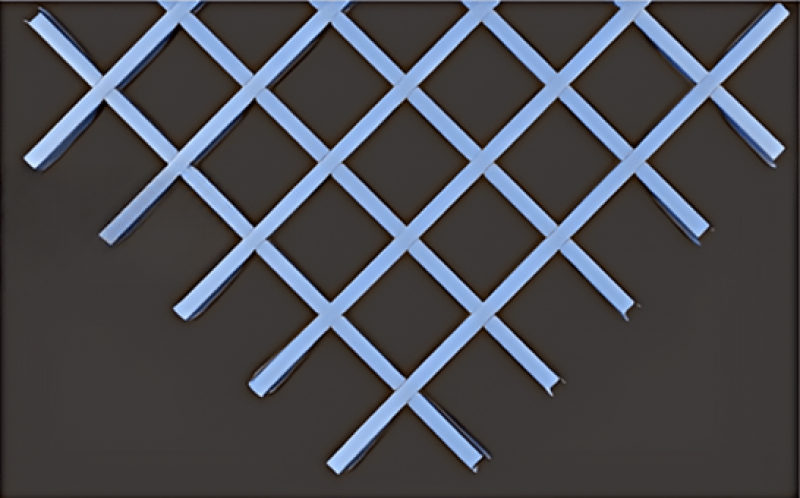

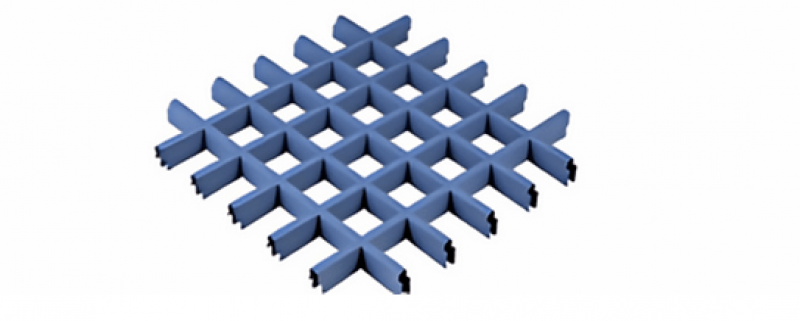

product lay 3

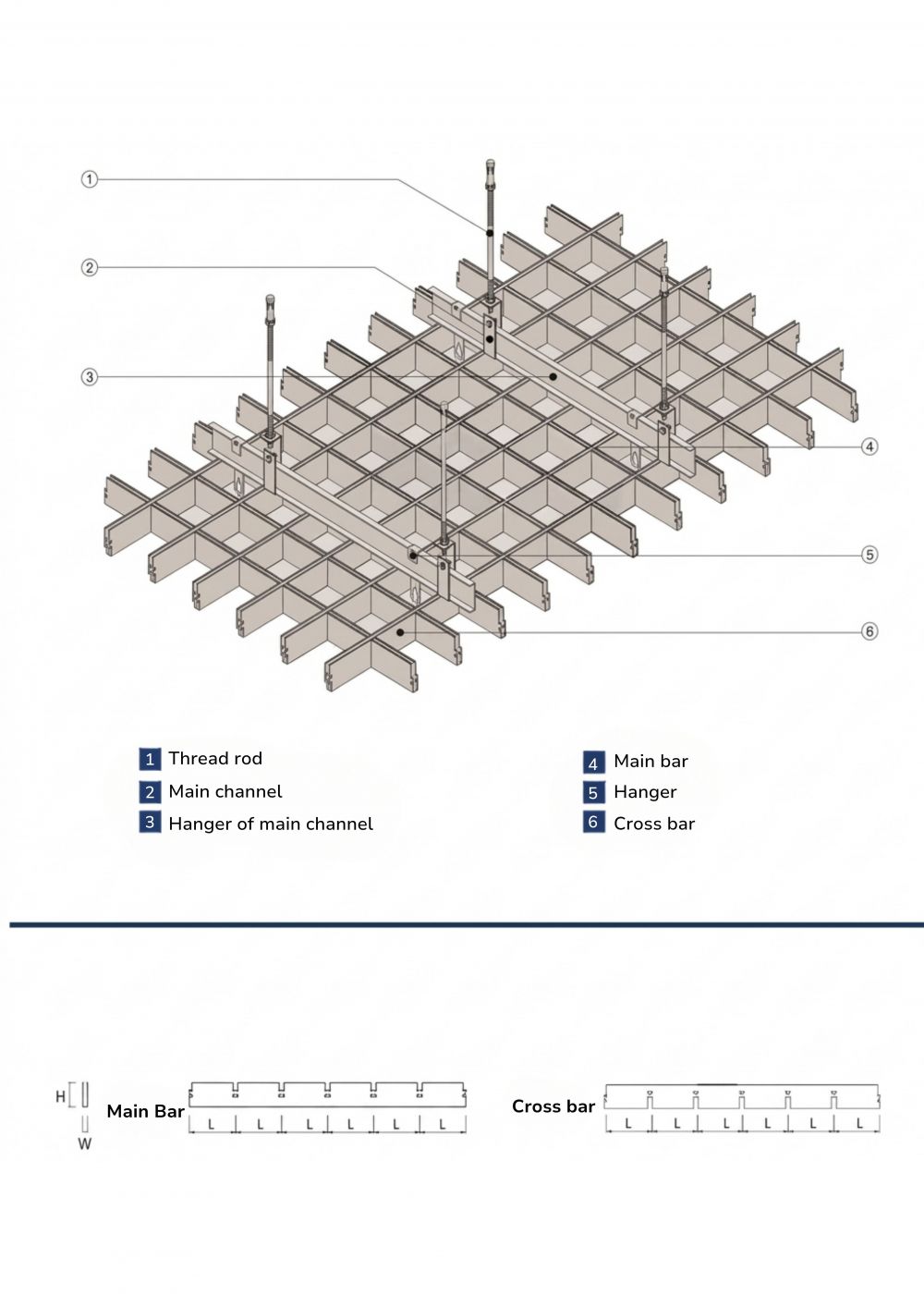

  INSTALLATION:
